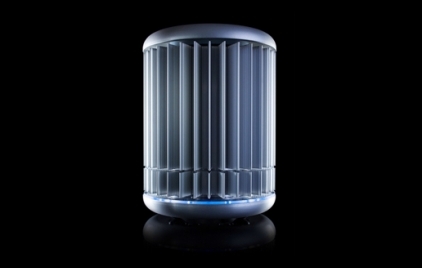

Technical Specification

• Ultra simple software interface
• Automated data analysis
• No moving parts
• Silent operation
• Operate from PC, Mac, via network, or stand alone with a USB drive
• 16 Wells
• 20ul reaction volume
• Peltier thermal control
• 3°C/s heating
• 2°C/s cooling
• Thermal uniformity +- 0.1°C range
• Thermal accuracy +- 0.25°C
• Extraordinary well-to-well reproducibility.

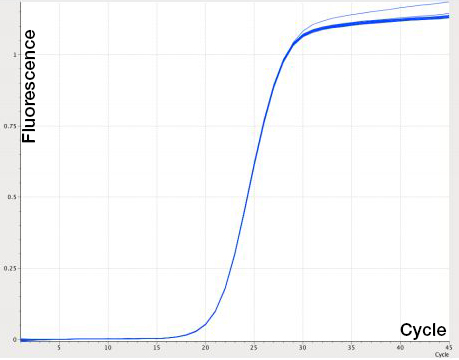

• Fig shows 16 individual replicates from one test:

• LED excitation
• CMOS detection
• Compatible with FAM and VIC labels
• 160mm Height
• 120mm Diameter
• 2kg weight
• 90W power consumption

I don't have laboratory. Can I use it?

Yes! If you don't have a laboratory it really doesn't matter. The instrument is designed to be used by anyone, anywhere. There is no complex programming or data analysis required. All of that is taken care of by some clever software. All you get is the answers to the questions you ask. Alongside the instrument we can also supply you a complete 'lab-in-a-box' containing the few simple tools that you need to do your own DNA testing.

Is everything completely automated?

Yes! If you don't have a laboratory it really doesn't matter. The instrument is designed to be used by anyone, anywhere. There is no complex programming or data analysis required. All of that is taken care of by some clever software. All you get is the answers to the questions you ask. Alongside the instrument we can also supply you a complete 'lab-in-a-box' containing the few simple tools that you need to do your own DNA testing.

What is a genesig® easy kit?

genesig® is a catalogue of over 400 different DNA testing kits for a wide range of applications. The kits come in 3 formats: advanced, standard and easy. The genesig® easy kit range is the easiest to use version and is designed specifically and optimised for use on the genesig q16 instrument.

Can I use the instrument with other kits or my own primers?

The genesig® q16 is a closed system that works specifically with the genesig® easy kit range only.

Is the q16 compatible with the genesig advanced and standard kits?

No. The q16 uses sophisticated algorithms for automatic data calling. These rely on data being received through the correct channels and controls falling within precise Cq windows. These are defined within the configuration of the Easy kits

Does the price of the q16 include the software package?

Yes. Instruments are shipped with software. There is no additional charge for software and it can be installed on as many computers as you like. From time-to-time software updates will be made available for free download too.

What kind of reaction tubes/plasticware does the q16 use and do I need to buy them separately?

The genesig q16 uses low-profile 0.2ml thin-walled PCR tubes. Make sure you dont use alternative plasticware in the q16 as it could damage your instrument. Every genesig Easy kit comes with reaction tubes for the q16 so you don't need to purchase these separately.

How do things work if I have more than one q16?

You can connect multiple instruments to the same computer via a network switch or via a local area network. One copy of the software on one computer sufficient to analyse the data from multiple machines.

Does the q16 require validation/calibration upon arrival like some other qPCR machines?

No the q16 arrives ready to use. If you require calibration data or a routine calibration service for a Quality Systems purposes please contact us.

Does q16 have sound, light or display indicator that reaction is over and timer to show how much time is left until the end of the analysis?

Yes! Voice commands are present at the beginning and end of each run. Coloured lights show the progression throughout the PCR cycles and the software displays a countdown to show how much time remains for analysis to complete.

Can the q16 run genotyping kits?

Not at present, although this is planned for a future update.

Can the q16 run GMO detection kits?

Not at present, although this is planned for a future update.

What is the warranty on the q16 and can we purchase an extended warranty package?

The q16 is supplied with a 12 month warranty. Additional warranty can be purchased.

What happens if my q16 needs repairing?

We will ask you to return the instrument and we will provide another instrument for you to use in the meantime whilst repairs are underway.

Can I replace parts with locally sourced components? Would this void the warranty?

We would never recommend replacing parts on the q16 yourself. Always contact us for any technical issues. Changing any parts yourself would void the warranty.

What channels does the q16 detect through?

Every genesig Easy kit contains multiplexed green/yellow primer/probes for the target of interest and internal control.

What is the reaction volume on the genesig q16?

q16 reaction tubes can hold up to 200ul, although genesig Easy reactions are all 20ul in volume.
